Description
The Consistent H61 LGA 1155 Micro-ATX Motherboard is engineered to support 2nd and 3rd Generation Intel Core i3, i5, i7, Pentium, and Celeron processors. Featuring an NVMe M.2 slot alongside traditional SATA ports, dual-channel DDR3 memory support up to 16GB, high-definition audio, and high-speed Ethernet, this motherboard offers exceptional reliability and performance for desktop builds and system upgrades.
Technical Specifications:
– Brand: Consistent
– Model: CMB H61
– Form Factor: Micro-ATX
– CPU Socket: LGA 1155
– Processor Support: 2nd & 3rd Gen Intel Core i3 / i5 / i7 / Pentium / Celeron
– Chipset: Intel H61 Express
– Memory Support: Dual-Channel DDR3 1066/1333/1600 MHz
– Max Memory Capacity: Up to 16GB (2 x DIMM slots)
– Storage Interface: 1 x M.2 NVMe Slot, 4 x SATA 3Gb/s Ports
– Expansion Slots: 1 x PCIe x16 Slot, 1 x PCIe x1 Slot

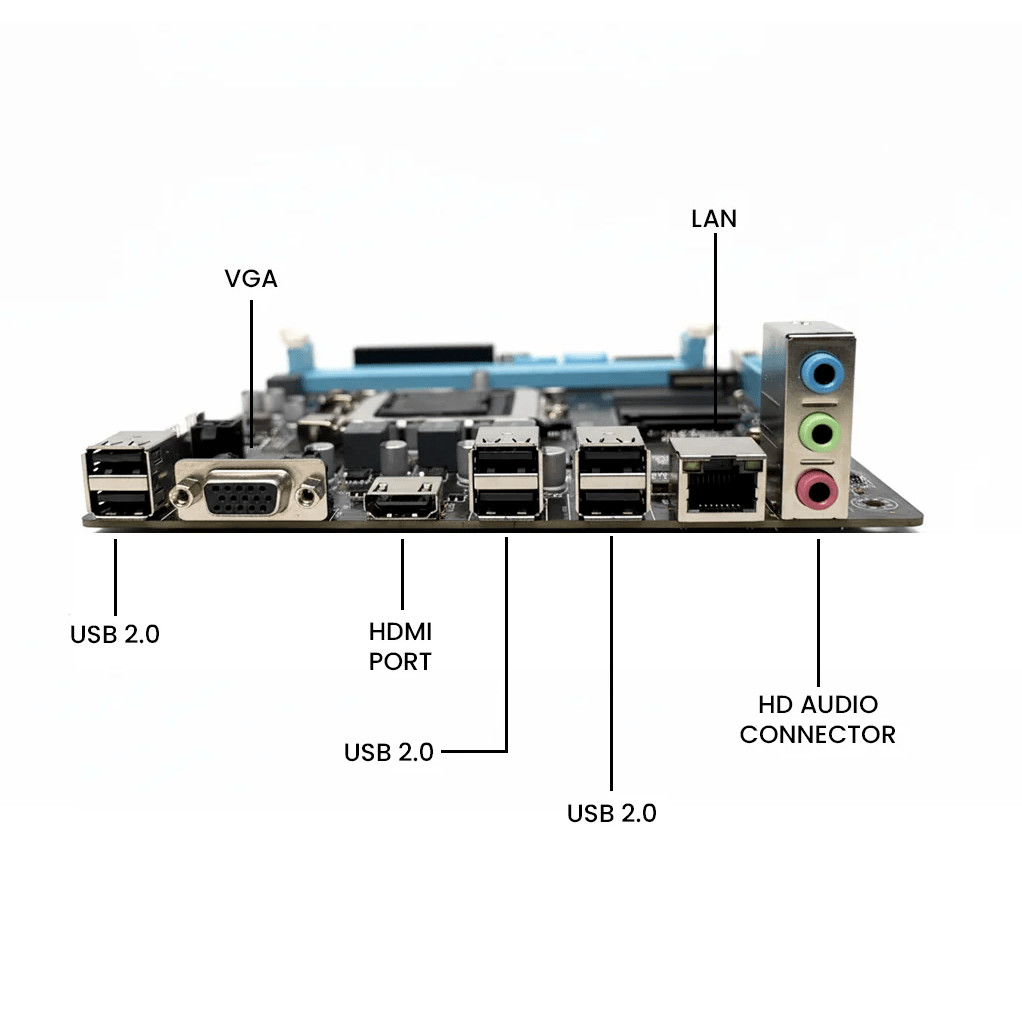

– Video Output: 1 x HDMI Port, 1 x VGA Port
– USB Ports: 6 x USB 2.0 Ports (Rear & Header)
– Audio: Realtek 6-Channel High Definition Audio
– LAN: Realtek 10/100/1000 Mbps Gigabit Ethernet
– Warranty: 3 Years Manufacturer Warranty
